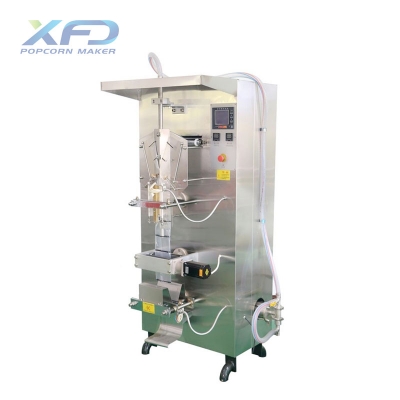

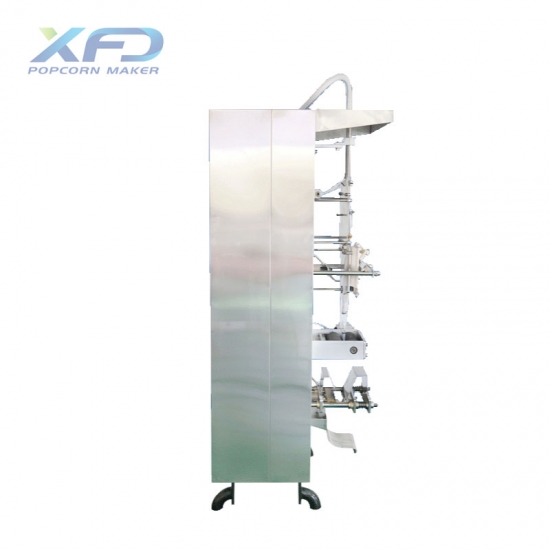

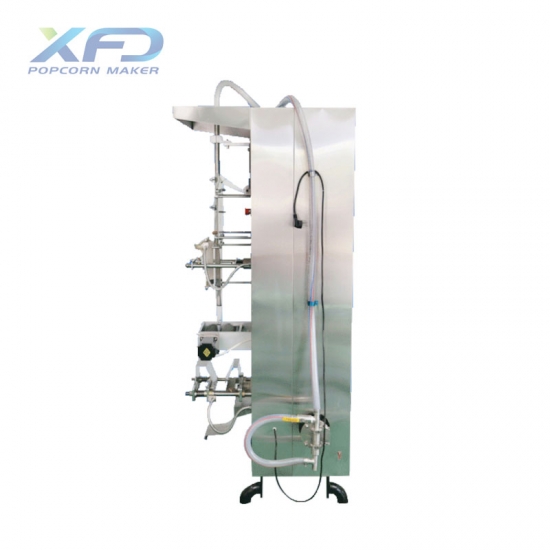

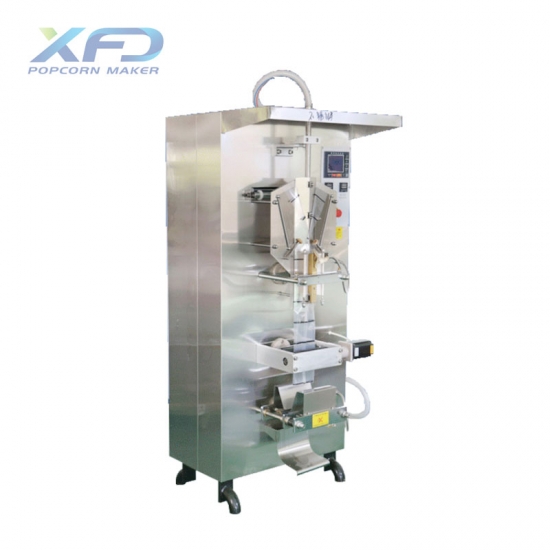

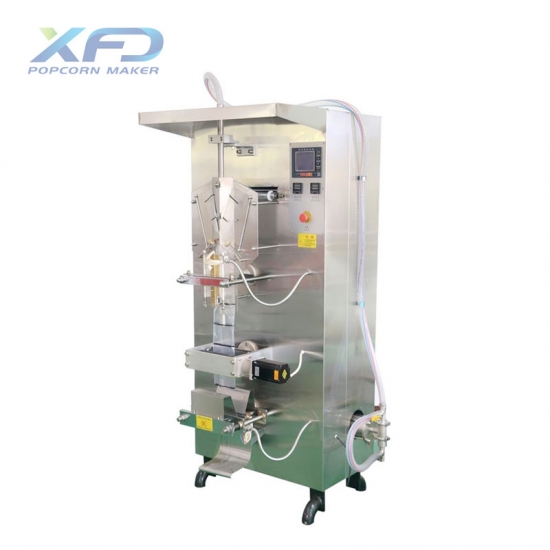

Automatic Liquid Filling and Packing Machine

This liquid packing machine is designed for the automatic package of liquid, semi-liquid, stickly liquid materials, such as water, ketchup, honey, cream, shampoo, perfume, milk, paste, suace, oil, bean sauce, chocolate sauce, etc.

  • Item NO.:

    CF-61CJ-Y
  • Payment:

    T/T, L/C, D/P, Western Union
  • Product Origin:

    China Mainland
  • Shipping Port:

    Xiamen Port,China
  • Lead Time:

    30 Days
  • Features and Advantages

Liquid filling and packaging machine


1. Description



This new type liquid packing machine is precisely controlled by PLC system, it can automatically finish all the production process, such as bag making, counting, filling, sealing and coding date or batch number, adding easy to open notch, cutting separated or connected bags. Automatic liquid sachet packing machine uses 304SS nozzles and valves, more suitable for filling different kinds of liquid like milk, sauce, soymilk, vinegar, etc.


Paper/PE, BOPP/PE, PT/PE, PET/AL/PE, Tea filter paper and other compound materials of packing film are applicable by this machine.


All parts that get touch with liquid is made of the 304SS. Additionally, this machine can add color ribbon coding, dust cover and sterilizing lamp.


2. Basic Parameters



Power 1.1 kW Net Weight 250 kg
Certification ISO 9001 Voltage 220 V or customer required
Filling Range 0.2-100 g Bag Size W:15-100 mm,  L:20-200 mm
Packing Speed 30-60 bags/min Sealing Type Back Sealing
Warranty Time   12 months Dimension 800*800*1900 mm


3.

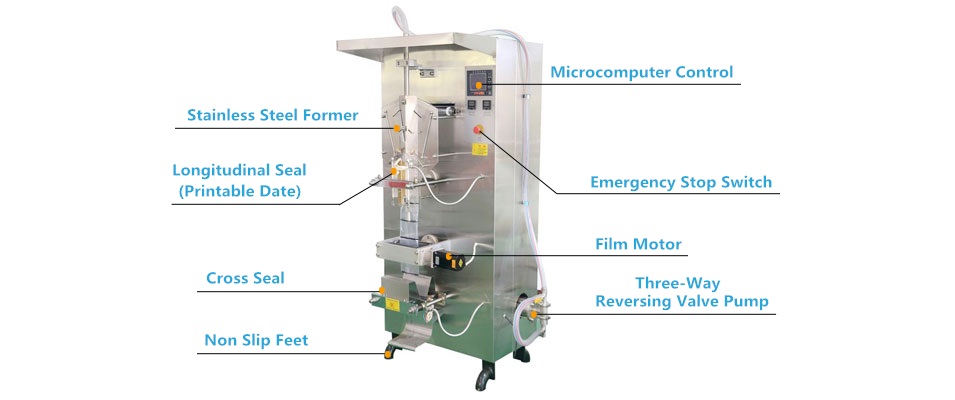

 Main Structure


Liquid Packing Machine Structure


4. Features


  • Adopt industrial PLC control system, ensure the stable performance and be easy for parameters adjusting.
  • Adopt the most advanced microcomputer chip control system.
  • It can be installed a code printer for 1-3 lines chatacters, such as production and expiry date according to your special needs.
  • High precision data-type weighing sensor realizes precise weighing.
  • Separate PID temperature controller, suitable for the sealing of various packing materials.
  • High quality wear parts from World-famous Brand igus, Leadshine, SMC, ensure the stability, longer working life and easy to get for replacing.


5. Application




6. Why choose us?


  • Factory sale directly with competitive price
  • Comprehensive service for order following and tracking
  • OEM and customized design for your special needs
  • Fast delivery within 15 days receiving the deposit
  • Professional sales team,quality inspection and report, maritime logistics guidance
  • After-sale services:video technical support, 24 h online support
