Home Industrial Popcorn Machine Factory Hot Air Popcorn Machine and Caramelizer Production Line Popcorn Production and Coating Line

New Products

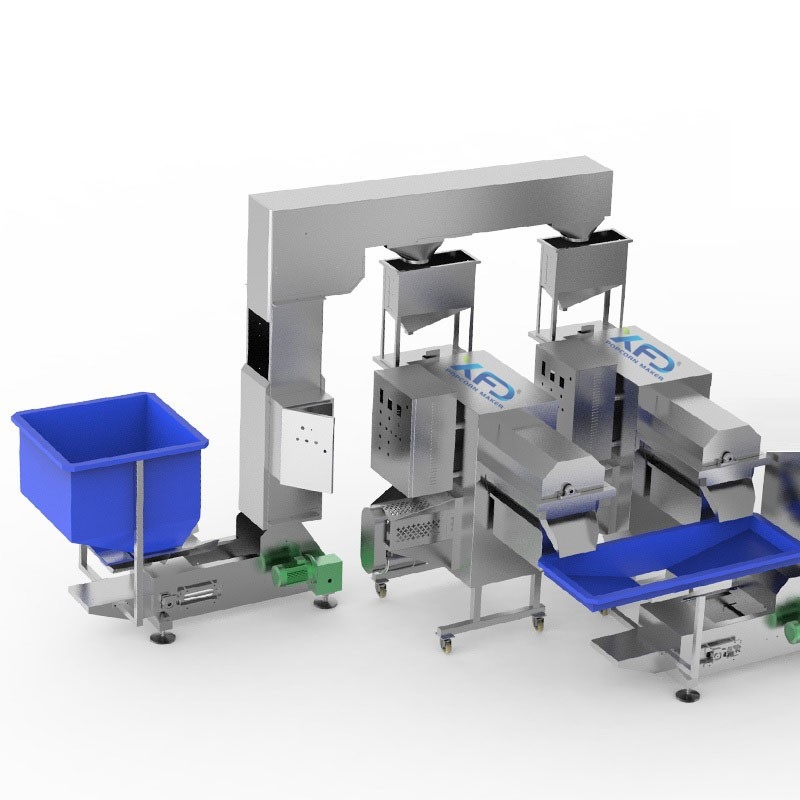

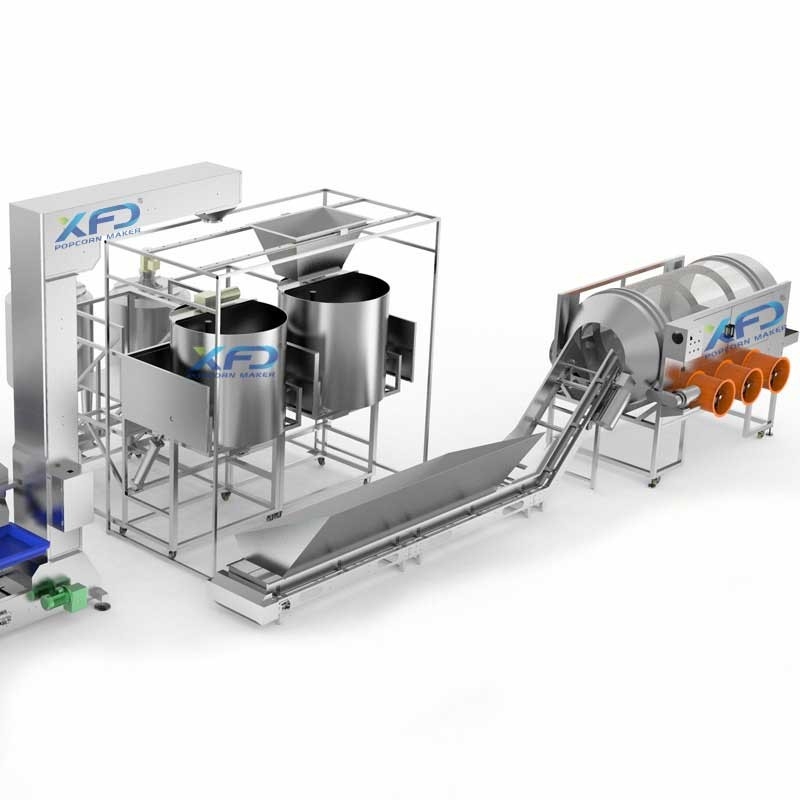

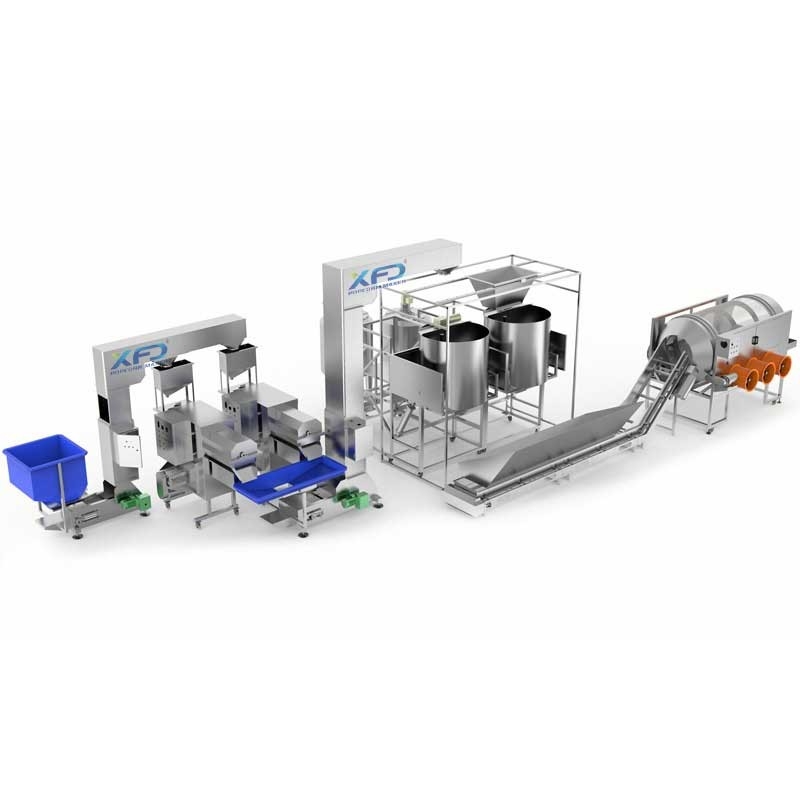

Factory Hot Air Popcorn Machine and Caramelizer Production Line Popcorn Production and Coating Line

Equipped with large-size caramelizer, this hot air popper production line is fully automatic, high capacity and low energy consumption. Try this for professional popcorn factory.

  • Item NO.:

    ICX-GT-2
  • Payment:

    T/T, L/C, D/P, MoneyGram
  • Product Origin:

    China Mainland
  • Shipping Port:

    Xiamen Port,China
  • Lead Time:

    30-80 Days
  • Features and Advantages

Industrial Hot Air Popper and Caramelizer Production Line Popcorn Production and Flavoring Line


1. Description



Support to add more popcorn machines and caramelizers directly to enlarge the capacity, this line is fully automatic for popcorn production and coating. It is highly cost-effective, suitable for popcorn factory who need 180-250kg/h output caramel or chocolate popcorn and will enlarge their output in the future.

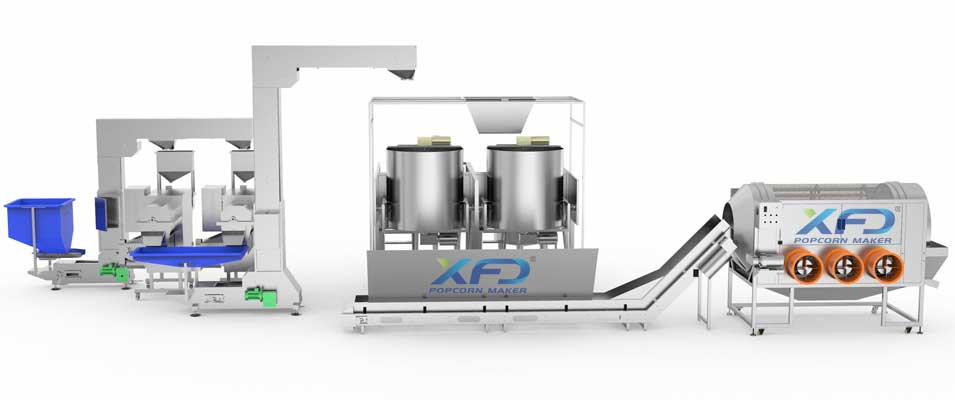

Hot air popcorn production and coating line


2. Basic Parameters


Brand
XFD Quality High guarantee
MOQ 1 Set Technique Hot air popcorn machine
Certification CE, ISO 9001 Main Material SUS 304 stainless steel
Condition New Application Popcorn production
Warranty Time   1 year Type Automatic


3. Details and Features


* Support to add more popcorn machines and caramelizers directly in this line to enlarge the capacity.
* Modularization design, easy to maintain and replace.
* Equipped with an automatic alarm system, an adjustable digital display and control for precise temperature settings and measuring actual product temperature.
* High quality spare parts from World-famous Brand ABB, SIEMENS and DELTA,ensure the safe stable operation and longer working life.
* Food grade SUS304 Stainless steel for the whole line.


4. Structure and Characteristic

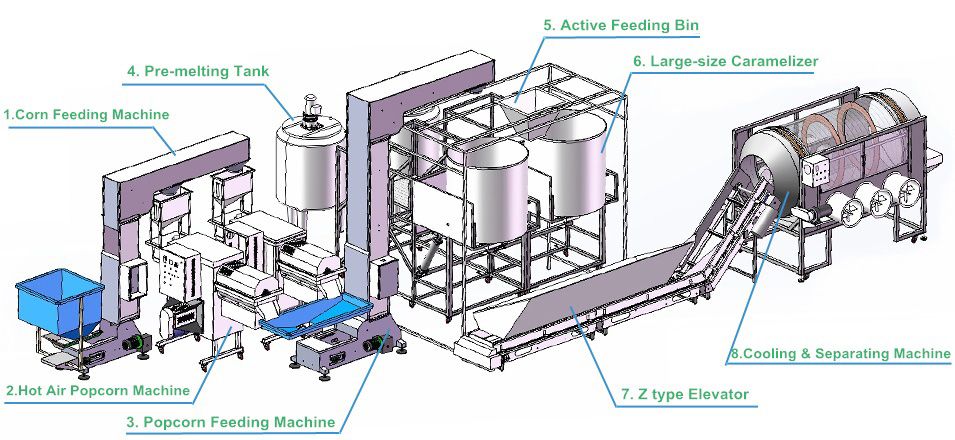

Hot Air Popcorn Machine and Caramelizer Production Line



NO. ITEM PICTURE TECHNICAL PARAMETERS UNIT CHARACTERISTICS
1 Corn Feeding Machine Corn Feeding Machine Function 1 One Corn Feeding Machine with Two Feeding Hoppers, applied to Optic Sensor, high cost effective, and hidden circuit, safer and easier to clean.
Convey the raw corns into the hot air popcorn machine.
Technical parameter
Size: 3732*890*2650mm
2 Hot Air Popcorn Machine Hot Air Popper Function 2 Easy to adjust production capacity with Two Hot air Popcorn Machine, Besides, the most important part is this machine comes with cooling and filtering popcorn function, economizing on electricity.
Popping the raw corns into popcorn with hot air.
Technical parameter
Capacity: 60~90kg/h
Size: 2190*1029*2135mm
3 Popcorn Feeding Machine Popcorn Feeding Machine Function 1 Hidden convey to protect popcorn from dust. Hidden circuit, safer and easier to clean.
Convey the pocorn into the popcorn feeding bin.
Technical parameter
Size: 4028*711*3800 mm

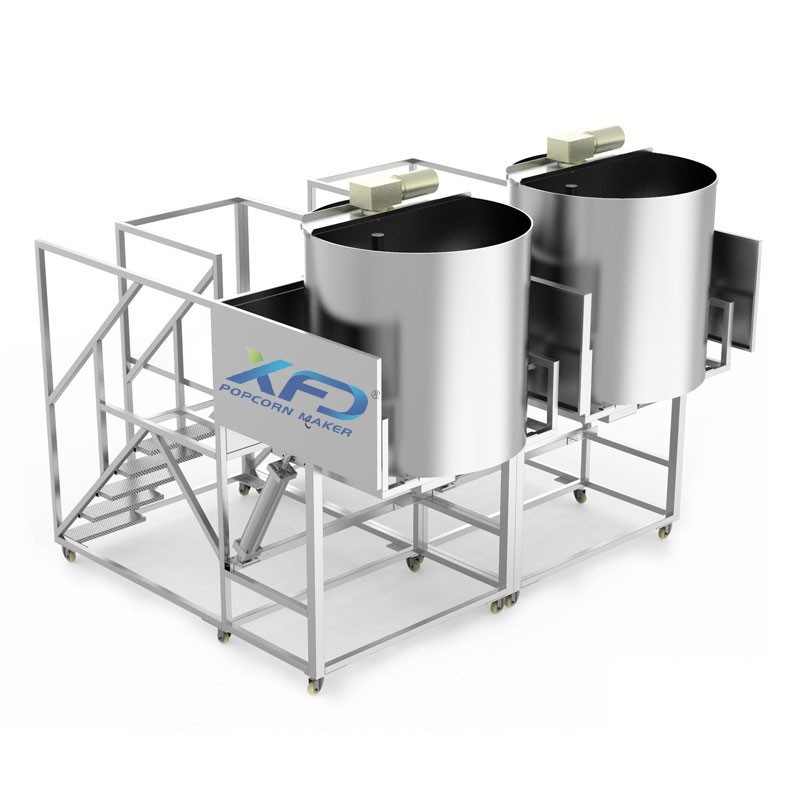

4 Pre-melting Tank Pre-melting Tank Function 2 Easy to inhale materials ( caramel, chocolate…) with Fully enclosed pre-melting tank, safter and health.
Melting the flavoring materials when the coating machine is working, such as chocolate, cheese, caramel, etc.
Technical parameter
Size: 1000*1000*2000mm
5 Active Feeding Bin Popcorn Production Line Function 1 Equipped with high quality and accurate senors on location, volume and so on. It could be lengthened according to your needs.
Through the sliding track, feeding the popcorn into the caramelizer.
Technical parameter
Size: 3000*1560*3030mm
6 Large Size Caramelizer Large Size Caramelizer Function 2 Equipped with automatic kettle-dumping and self-clean system. Energy saving.
Coating different flavored popcorn with chocolate, cheese, caramel, etc.
Technical parameter
Size: 2659*900*2330mm
7 Z Type Elevator and Conveyor Z Type Elevator Function 1 Easy to clean. Made of food grade SUS304 Stainless steel, healthier than plastic type.
Cooling and conveying the flavored popcorn into the cooling and separating machine.
Technical parameter
Size: 5462*1178*1505mm
8 Cooling and Separating Machine Popcorn Cooling and Separating Machine Function 1 The rotating speed can be adjusted according to your needs. Easy to clean, high capacity.
Cooling, filtering and separating the finished popcorn.
Technical parameter
Dimension:3500*2100*1950mm

You can choose any part from 1 to 8 according to your needs. For more details, please feel free to contact us soon.


5. Why Choose Us?


* World-class quality
Factory sale directly with competitive price
Flexible payment terms including T/T,L/C and so on
Fast delivery within 15 days receiving the deposit
Professional sales team,quality inspection and report, maritime logistics guidance

After-sale services:video technical support, 24 h online support


6. Cooperative Partners


XFD partners


Factory View

Popcorn factory view


Production Line

Popcorn Machine production line


R&D Team

Popcorn machine rearch and development team


Main Cooperative Partners


Popcorn machine end user


Packaging and Delivery


Popcorn machine Packaging



XFD Patents List


No. Patent Type Product Patent No. No. Patent Type Product Patent No.
1 Invension A Type of Popcorn Machine ZL201310186223.7 13 Utility Model Automatic Cooling & Filtering Machine ZL201420306061.6
2 Industrial Design A Type of Popcorn Warmer ZL201530140777.3 14 Utility Model Automatic Electromagnetic Popcorn Machine ZL201420306063.5
3 Industrial Design Air Flow Puffing Popcorn Machine ZL201530192948.7 15 Utility Model Cooker and Coater ZL201420306053.1
4 Industrial Design A Type of Popcorn Machine ZL201330187828.9 16 Utility Model A Type of Popcorn Warmer ZL201520307271.1
5 Industrial Design Electromagnetic Popcorn Machine ZL201330159019.7 17 Utility Model Cooker and Coater ZL201520307194.X
6 Industrial Design Industrial Cooker and Coater ZL201830520670.5 18 Utility Model Electromagnetic Popcorn Machine ZL201520307578.1
7 Industrial Design Commercial Popcorn Machine ZL201830576185.X 19 Utility Model Air Flow Puffing Popcorn Machine ZL201520406623.9
8 Industrial Design A Type of Popcorn Kettle   ZL201730063467.5 20 Utility Model Air Flow Puffing Machine ZL201520945463.5
9 Industrial Design Cinema Electromagnetic Popcorn Machine ZL201730063492.3 21 Utility Model Popcorn Machine with Cooling Table ZL201620773826.6
10 Utility Model Suspended Popcorn Machine ZL201720234455.9 22 Utility Model Oil Pump ZL201821290398.7
11 Utility Model Self-help Discharging Warmer ZL201720217046.8 23 Utility Model Feeding Structure of Popcorn Machine ZL201821289986.9
12 Utility Model A Type of Popcorn Machine ZL201620799923.2 24 Invension A Type of Hot Air Popcorn Machine    ZL201811204786.3 
