Home Industrial Popcorn Machine Popcorn Production and Coating Line Industrial Popcorn Maker Line

New Products

Popcorn Production and Coating Line Industrial Popcorn Maker Line

This line can make almost every flavors of popcorn, it's high cost-effective, your best choice.

  • Payment:

    T/T, L/C, D/P, MoneyGram
  • Product Origin:

    China Mainland
  • Shipping Port:

    Xiamen Port,China
  • Lead Time:

    40 Days
  • Features and Advantages

Popcorn Production and Coating Line Semi Automatic Industrial Popcorn Making Line


1. Description



Can you imagine this line can make almost any flavors of popcorn? This line is high cost-effective, support to add more popcorn machines directly to enlarge the capacity according to your needs. Choose us, our services and products will exceed your expectations.


2. Basic Parameters


Brand
XFD Quality High guarantee
Packing Standard Packing Technique Electromagnetic technology
Certification CE, ISO 9001 Main Material SUS 304 stainless steel
Condition New Application Popcorn production and coating
Warranty Time   12 months Type Semi automatic


3. Details and Features


* Apply indurstial PLC control system to ensure the stable of the whole line.

* Modularization design, easy to install, maintain and replace.

* Equipped with kettle-dumping, oil feeding and oil heating preservation systems, easy to control and labor-saving.

* Equipped with an automatic alarm system, an adjustable digital display and control for precise temperature settings and measuring actual product temperature.
* High-quality components from World-famous Brand ABB,SIEMENS and DELTA,ensure the stable operation and longer working life.
* SUS304 Stainless steel for the whole line (much better than SUS201).

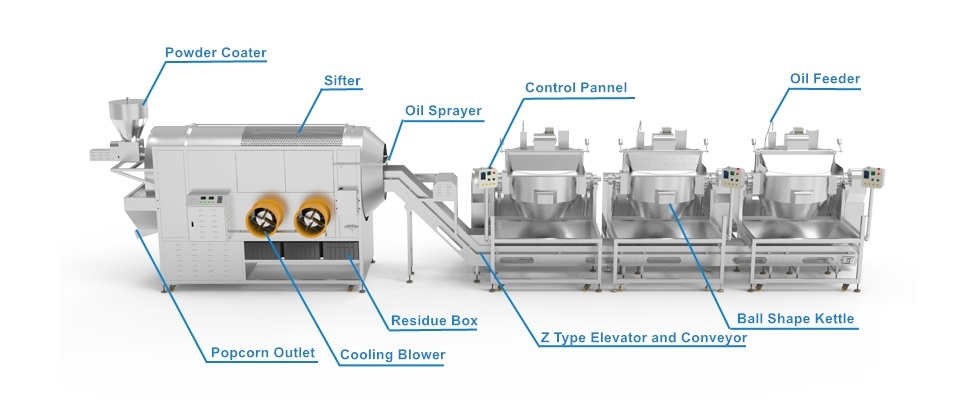

4. Structure and Characteristics

Popcorn Production and Coating Line


No. Item Picture Technical Parameter Remark

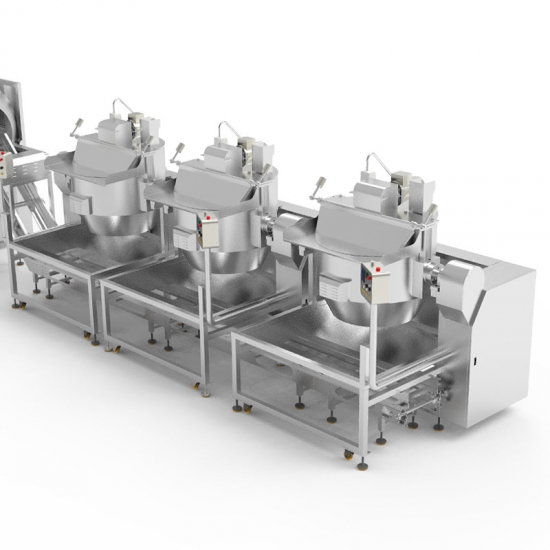

1 Electromagnetic Popcorn Machine Popcorn Making Machine Function: Equipped with automatic oil feeding system, oil heat preservation system and kettle-dumping systems, easy to adjust production capacity with two eletromagnetic popcorn machines. High productivity, 3mins per kettle(traditional one is 5-6mins per kettle). Lower production cost.
Popping the raw corns into popcorn by high productivity electromagnetic technology.
Technical parameter:
Capacity: 60~80kg/h (popcorn)
Total power: 35kW/380V
Size: 1650*1700*2000mm
2 400L Oil Tank  Popcorn Oil Tank Function: Equipped with oil agitator and oil pump. Keep the oil with a suitable temp, automatically feeding the oil to the popping kettles
Explore the popcorn by oil and coating the popcorn by flavored powders
Technical parameter:
Drive power: 13 kW
Size: 1000*1800mm  400L
3 Z Type Elevator and Conveyor Popcorn Conveyor Function: Easy to clean(SUS304, not plastic), Longer working life
Cooling and conveying the flavored popcorn into the cooling and coating machine.
Technical parameter:
Power: 0.75 kW
Size: 6100*500*1550mm
4 Cooling and Filtering Machine Popcorn Coating Machine Function: Easy to clean, high capacity
Cooling, filtering and separating the finished popcorn.
Technical parameter:
Power: 2.4 kW
Dimension: 3100*2100*1950mm
5 Powder Coater Cabinet Popcorn Powder Coater Function: Scatter the flavored powders on the popcorn
Coating the popcorn with flavored powders
Technical parameter:
Power: 90 W
Dimension: 2000*1500*1000mm

You can choose any part from 1 to 5 according to your needs. For more details, please feel free to contact us soon.



5. Cooperative Partners


XFD popcorn maker


6. Why Choose Us?


* World-class quality, latest technology
* Factory sale directly with competitive price
* Fast delivery within 40 days receiving the deposit
* Professional sales team, quality inspection and report, maritime logistics guidance
* After-sale services:video technical support, 24 h online support

Factory View

Popcorn factory view


Production Line

Popcorn Machine production line


R&D Team

Popcorn machine rearch and development team


Main Cooperative Partners


Popcorn machine end user


Packaging and Delivery


Popcorn machine Packaging



XFD Patents List


No. Patent Type Product Patent No. No. Patent Type Product Patent No.
1 Invension A Type of Popcorn Machine ZL201310186223.7 13 Utility Model Automatic Cooling & Filtering Machine ZL201420306061.6
2 Industrial Design A Type of Popcorn Warmer ZL201530140777.3 14 Utility Model Automatic Electromagnetic Popcorn Machine ZL201420306063.5
3 Industrial Design Air Flow Puffing Popcorn Machine ZL201530192948.7 15 Utility Model Cooker and Coater ZL201420306053.1
4 Industrial Design A Type of Popcorn Machine ZL201330187828.9 16 Utility Model A Type of Popcorn Warmer ZL201520307271.1
5 Industrial Design Electromagnetic Popcorn Machine ZL201330159019.7 17 Utility Model Cooker and Coater ZL201520307194.X
6 Industrial Design Industrial Cooker and Coater ZL201830520670.5 18 Utility Model Electromagnetic Popcorn Machine ZL201520307578.1
7 Industrial Design Commercial Popcorn Machine ZL201830576185.X 19 Utility Model Air Flow Puffing Popcorn Machine ZL201520406623.9
8 Industrial Design A Type of Popcorn Kettle   ZL201730063467.5 20 Utility Model Air Flow Puffing Machine ZL201520945463.5
9 Industrial Design Cinema Electromagnetic Popcorn Machine ZL201730063492.3 21 Utility Model Popcorn Machine with Cooling Table ZL201620773826.6
10 Utility Model Suspended Popcorn Machine ZL201720234455.9 22 Utility Model Oil Pump ZL201821290398.7
11 Utility Model Self-help Discharging Warmer ZL201720217046.8 23 Utility Model Feeding Structure of Popcorn Machine ZL201821289986.9
12 Utility Model A Type of Popcorn Machine ZL201620799923.2 24 Invension A Type of Hot Air Popcorn Machine    ZL201811204786.3 
